XL(R) Series Light Duty Sludge and Slurry Pump
- Commodity name： XL(R) Series Light Duty Sludge and Slurry Pump
- Description
-
PRODUCT INTRODUCTION
XL(R) series light duty slurry pump are single-stage, single-suction, cantilever, double casing and horizontal centrifugal slurry pump which apply to operating conditions of large flow, low concentration and lower head. When the speed is low, this pump can transmit slurry of strong abrasion and high density. Compared with WX type slurry pump of equivalent diameter, this type is of small size, light weight and high cost performance and has been widely used in metallurgy, electric power, chemical industry, mining, papermaking, building materials and other industries.
STUCTURAL FEATURE
- This pump is applicable to high duty and severe operating conditions for having large diameter and short cantilever to ensure the rigidity of the shaft.
- The hardened stainless sleeve and the shaft are equipped through clearance fit, coupled with O-ring on the two ends, thus the shaft is of wear-resisting and anti-corrosion.
- Either the front or back cover board of the impeller is equipped with auxiliary blade, which can reduce the return flow and the seal pressure. Other methods like a wider-runner and blade concave are adopted to enhance overcurrent ability and anti-abrasion ability for extending the service life.
- The ability of withstanding high pressure of the pump casing and cover is ensured by using ductile iron material and strengthening rib.
- The overcurrent components adopt various high Cr anti-abrasive alloys or different rubber and are of anti-abrasive, anti-corrosion, impact resistance, scouring resistance and other features. Moreover, the metal overcurrent components and the rubber ones can be used interchangeably or in a mixer way to satisfy the requirement of different operating conditions.
- Seal types like packing seal, auxiliary impeller seal, and mechanical seal are available for shaft seal to satisfy different seal requirement.
- You can choose to install the output position of the pump by eight different angles (with an interval of 45 degrees).
- Oil lubrication and grease lubrication are provided to the bearing assemblies. The oil lubrication components is able to lower the operation temperature effectively to reduce the trouble caused by too high bearing temperature. The grease lubrication components have features of simple structure, reliable operation, and easy installing, commissioning and maintenance.
APPLICATION SCENARIOS
- Mill Discharge
- Coarse Sand
- Tailings
- Mineral Concentration
- Heavy Media
- Coal Washing
- Phosphoric Acid
- Process Chemical
- Bottom/Fly Ash
- Metal Smelting
XHH clear water performance table
Outline drawing

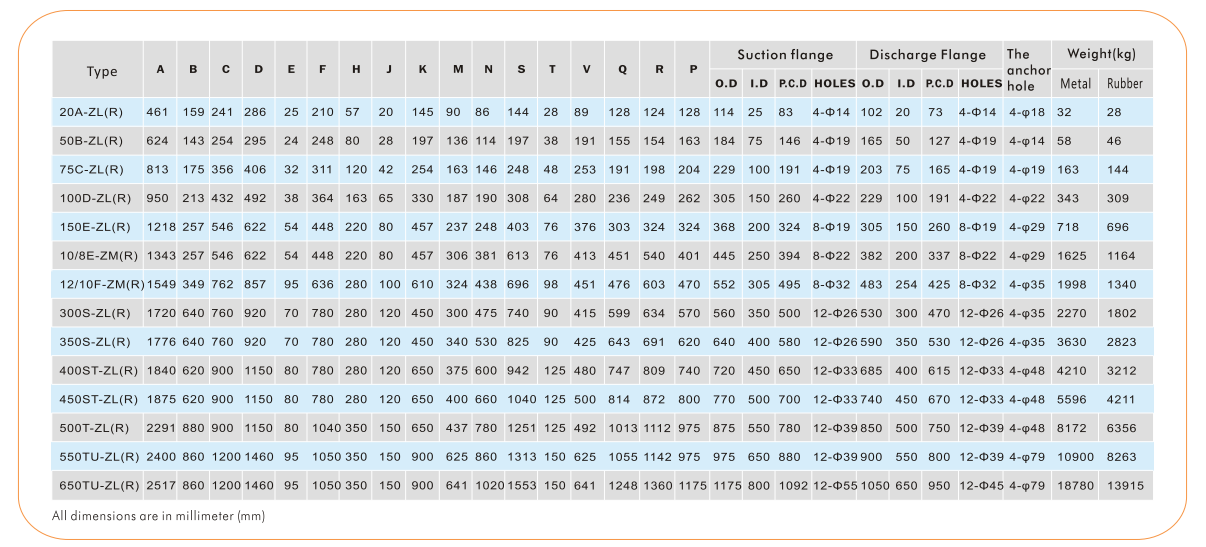

Outline Dimensions
Key words:
Product Packing
Company Information
Hebei Xingou Machinery Equipment Co., Ltd., is a large-scale slurry pump manufacturing enterprise. Xingou provides slurry pump and special alloy parts that feature a high performance and a wearing and corrosion resistance. First established in 1998, we now own three production bases with a dredge pump, desulphurization pump and slurry pump production base located in Shijiazhuang Development Zone, covering 46000 square meters.
Xingou can complete the research and development of new products, due to our self-owned pump test station, which carries out tests with extreme accuracy to ensure all pumps meet international standards, and allow us to offer only the best products and materials to meet different operating conditions. We have a large mold database that includes a full range of advanced aluminum molds used to produce various industrial pump castings. Our company has an extensive inventory of standard pieces, allowing us to keep a delivery period to within 10 days of the order being placed. If standard products don’t meet your needs, supply us with special design drawings, and we will carry out custom OEM orders for even the most advanced EPC casing line. We work with numerous well-known domestic names, including the Waterway Bureau, mining companies, desulphurization companies and more, as well as partnerships with international corporation customers.
Our product line includes pumps and accessories, and OEM services, and has been sold around the world to customers from North and South America, Africa, Russia, Europe and Southeast Asia. Come check us out today, and let Xingou show you what we have to offer for all of your slurry pump needs.
